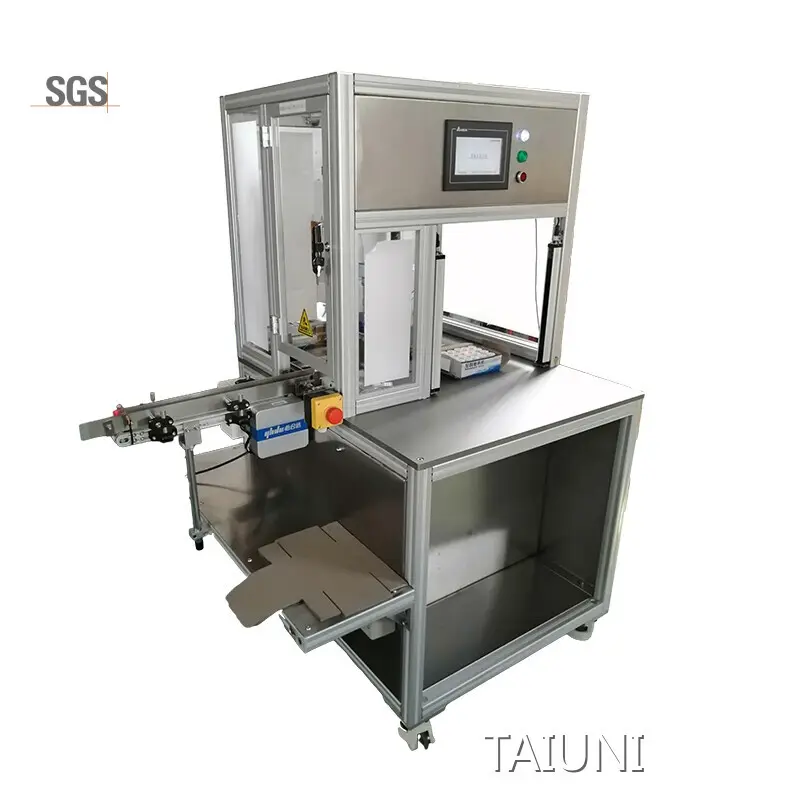

Pick and Place Mechanism with Custom Services for Electronic Power

Product Overview

1) Product overview

Product Features

- A modular pick-and-place mechanism supplied with custom services, designed to automate precise part transfer in packaging and assembly lines. Key subsystems include a conveyor belt for incoming bottles/parts, a positioning (alignment) mechanism that arranges items into a 4 × 5 grid, and a pick-and-place unit built around a 4-axis robot with sponge suction cups and detection sensors. The system is controlled via an operator touchscreen and a CE-compliant control cabinet (PLC, servo drivers, power supply, relays).

Product Value

2) Product features

Product Advantages

- Conveyor belt feeding for continuous material transfer.

Application Scenarios

- Alignment mechanism with pusher cylinder and multiple sensors to form consistent 4×5 arrays for reliable robot picks.

- 4-axis robot end-effector with sponge suction cups and sensors for gentle, accurate handling.

- Intuitive touchscreen for configuring speed, timing, and positioning.

- CE-standard control cabinet housing PLC, servo drivers and necessary electronics.

- Low operating noise (below 70 dB) and tested for performance and durability.

3) Product value

- Increases throughput and consistency by automating alignment and placement tasks.

- Reduces labor requirements and human error while protecting delicate items with soft suction cups.

- Flexible parameter control via touchscreen allows fast changeovers and process tuning.

- CE-compliant electrical components and tested durability lower operational risk and maintenance costs.

4) Product advantages

- High-precision handling from combined alignment mechanism and 4-axis robot.

- Gentle gripping (sponge suction cups) suitable for fragile or irregular items.

- Integrated sensing throughout (alignment and pick stages) for high pick accuracy and fault detection.

- Modular design and customizable services enable adaptation to customer-specific parts and workflows (including electronics/power components).

- Proven reliability and compliance with international standards.

5) Application scenarios

- Pharmaceutical packaging lines (bottle sorting and loading into cartons).

- Small-part placement in electronics and electronic-power assembly (capacitors, connectors, modules) where precise, gentle handling is required.

- Cosmetic and food packaging of small containers.

- Any manufacturing or packaging process needing high-speed, repeatable pick-and-place of fragile or similarly sized items with easy parameter adjustment.
