Bowl feeder for vibration isolation rubber bushing with parts escapement mechanism automotive parts bowl feeder

Parts feed by this machine

These are vibration isolation rubber bushings installed on a vehicle. Our machine can orientate them for the production line.

Linear track sensor

If the linear track is full of rubber bushings, this sensor will indicates in red light to stop the bowl feeder. In contrast, if the track is lack of tread rods, this sensor will indicates in green light, and the bowl feeder will keep feeding tread rods into the linear track.

Bowl orientating mechanism

On this track, the rubber bushings with right position will transport into the linear track, while those disorientated ones can flow off back into the bowl, then re-circulate for subsequent orientation attempts.

Surface coating of the bowl

This PU coating of the bowl surface can reduce abrasion of the plastic cover, also the noise level of the bowl feeder.

Parts escapement mechanism

The design of parts escapement mechanism can separate one single screw rod to the fixed position, where robot can pick it precisely.

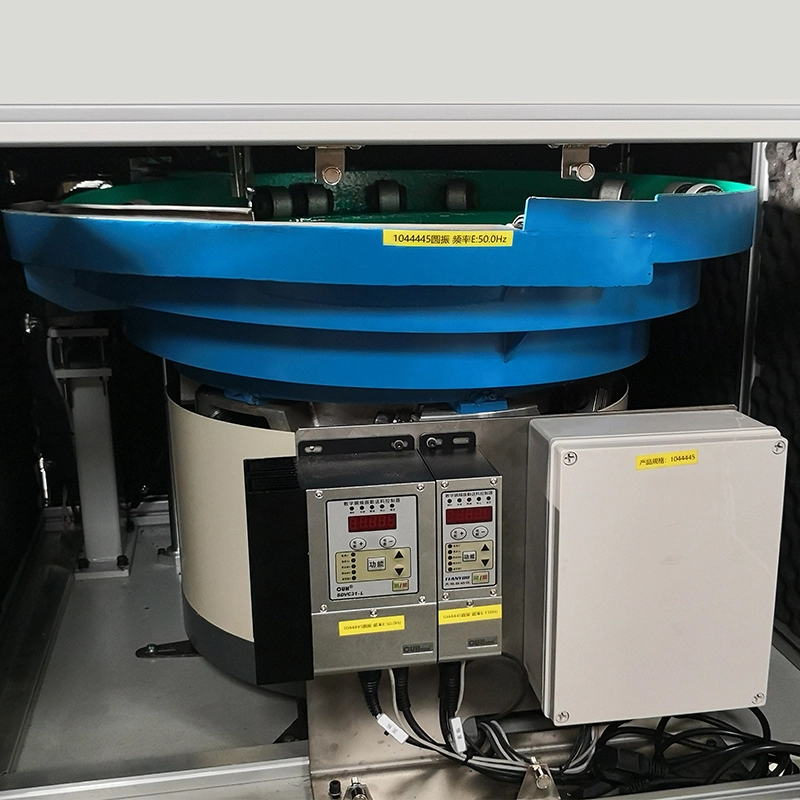

Support frame & Dust cover

This feeding system is set on a stand-alone support frame and is equipped with a dust cover, which can effectively preventing material contamination while reducing operation noise level.
