Part Nests Escapement & Mechanism Part Nests Escapement for Metallurgy Electroplating Supply

Product Overview

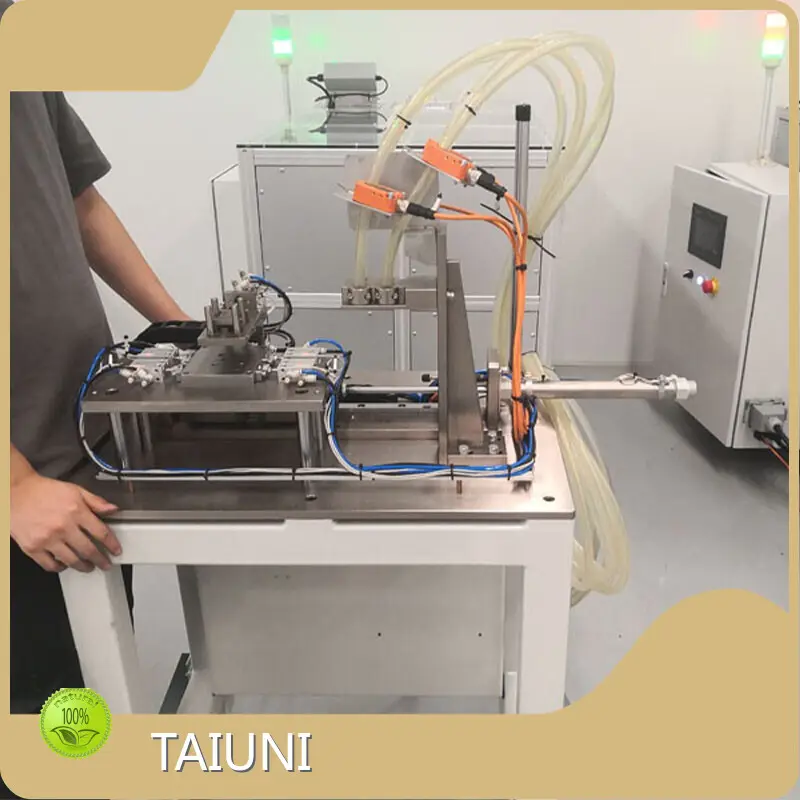

- A compact escapement and feeding mechanism (Part Nests Escapement) designed for automated handling of threaded rods and similar parts.

- Integrates a four-track linear feeder with a rotary actuator to separate and feed four rods simultaneously into flexible tubes and deliver them to set target positions.

- Intended for industrial supply lines such as metallurgy and electroplating where reliable, repeatable part presentation is required.

Product Features

- Rotary actuator driven by a rotary cylinder to sequence and separate parts from the feeder.

- Four flexible, visible and durable blow-feeding tubes with four ring-shaped sensors to monitor part passage.

- Four auxiliary clamping cylinders provide individual clamping and positioning for each rod.

- Sensors at target points to confirm correct arrival; air pressure switch to monitor pneumatic supply and alarm on low pressure.

- Positioning repeatability: within ±0.1 mm for each rod; operating noise level below 75 dB.

Product Value

- Increases automation and throughput by feeding up to four parts per cycle, reducing manual handling and cycle time.

- Improves assembly and processing accuracy through high repeatability and positive part detection.

- Reduces downtime and rejects by providing real-time detection (tube sensors, target sensors, and air-pressure alarm).

- Enhances process visibility and maintenance ease via transparent, durable tubes and clear sensor feedback.

Product Advantages

- Robust design developed by experienced designers with strict in-line quality control for consistent performance.

- Multi-channel simultaneous feeding (four tracks) for higher productivity compared with single-feed systems.

- High-precision positioning (±0.1 mm) suitable for precision assembly and surface-treatment operations.

- Built-in safety/monitoring features (air pressure switch, multiple sensors) to prevent failed feeds.

- Low operating noise and durable components for reliable long-term use in industrial environments.

Application Scenarios

- Metallurgy and electroplating supply lines for feeding threaded rods, pins or similar parts into plating baths or fixtures.

- Automated assembly and fastening stations where precise presentation of small shafts/rods is required.

- High-volume manufacturing lines needing multi-channel part feeding and consistent positioning.

- Surface treatment, sorting, or inspection stations where verified delivery and minimal handling damage are important.
