High End Pick and Place Mechanism for Workplace

Product Overview

- A high-end pick-and-place mechanism designed for automated handling and packaging of medicine bottles.

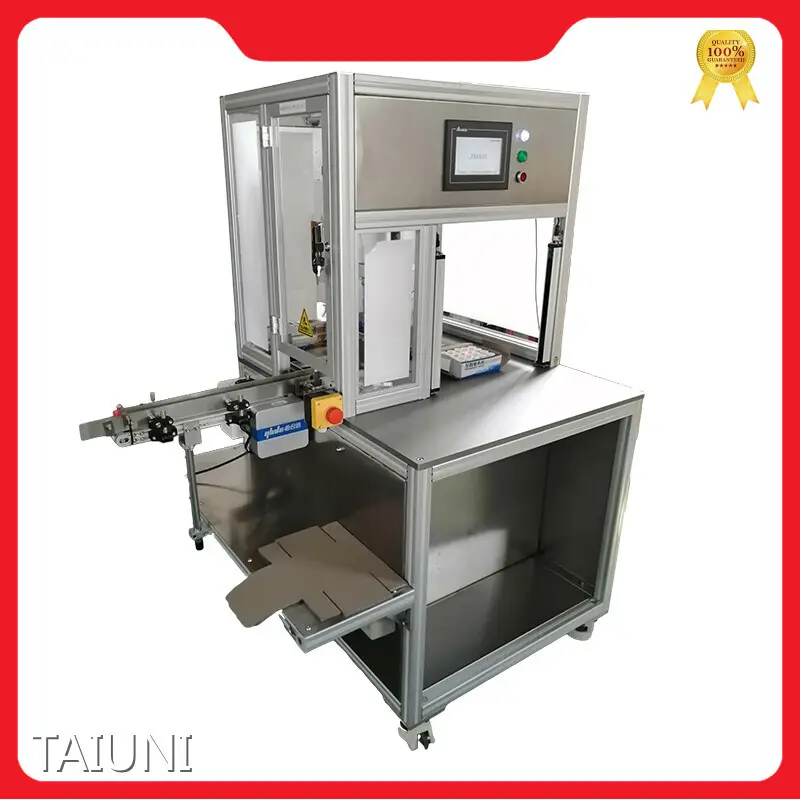

- System integrates a conveyor belt that feeds bottles, a positioning/alignment unit that organizes bottles into precise 4×5 arrays, and a pick-and-place module (4-axis robot with sponge suction cups) that lifts and places bottles into cardboard boxes.

- Complete machine is controlled via an intuitive touchscreen and housed with a CE-standard system control cabinet.

Product Features

- Conveyor-fed workflow that accepts bottles from upstream processes.

- Positioning mechanism with pusher cylinder and multiple detection sensors to create consistent 4-row by 5-column formations for reliable robot pick-up.

- Pick-and-place assembly: 4-axis robot, sponge suction cups for gentle handling, and detection sensors for accurate placement.

- Touchscreen HMI for on-the-fly adjustment of speed, timing, and positioning parameters.

- CE-compliant control cabinet containing PLC, servo drivers, power supplies and related components. Noise level below 70 dB.

Product Value

- Greatly increases packing throughput and consistency compared with manual handling.

- Improves placement accuracy and reduces product damage (soft sponge suction cups suitable for fragile bottles).

- Reduces labor costs and human error while ensuring a traceable, configurable automated process.

- Enables fast changeover and parameter tuning to meet different production requirements.

Product Advantages

- High reliability and quality construction with industrial-grade PLC and servo control.

- Precise multi-sensor alignment plus 4-axis robotics for accurate, repeatable pick-and-place operations.

- User-friendly touchscreen control simplifies setup and adjustments, shortening commissioning time.

- Gentle handling design suitable for delicate or small bottles; low operational noise (

- Backed by an experienced manufacturer offering production expertise and customer-focused service.

Application Scenarios

- Pharmaceutical packaging lines for filling and boxing medicine bottles.

- Cosmetic and personal-care product packaging where gentle, precise bottle handling is required.

- Small-bottle bottling and secondary packaging plants that require formation, picking and boxing.

- Electronics or small-parts assembly/packing lines that need precise, repeatable pick-and-place operations.

- Integration into existing conveyor-based production lines as an automated end-of-line packaging station.
