Fast Delivery Escapement Mechanism by TAIUNI

Product Overview

1) Product overview

Product Features

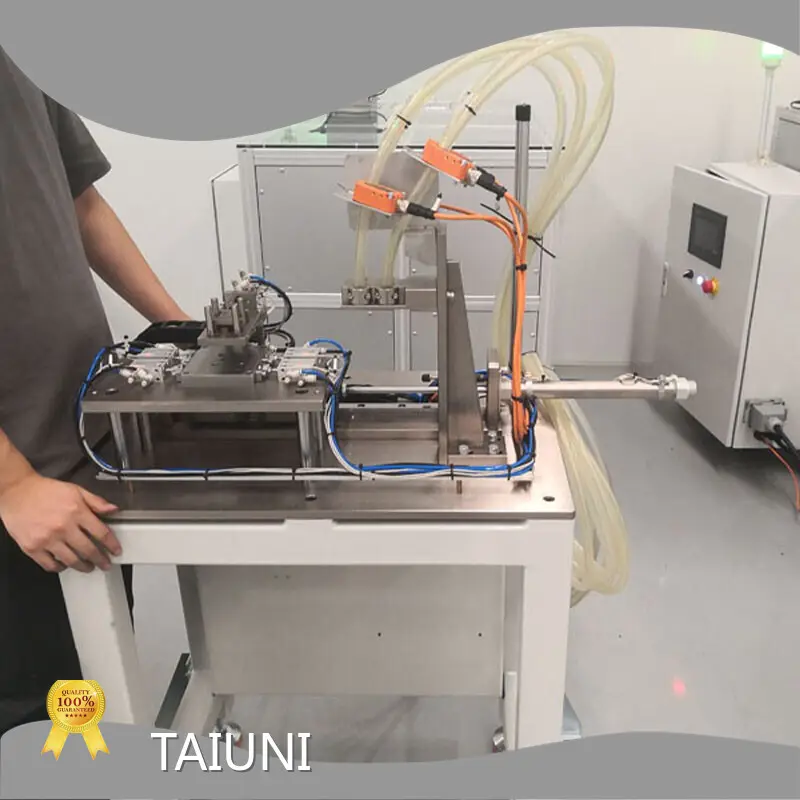

- Fast Delivery Escapement Mechanism by TAIUNI is a rotary-actuated pneumatic escapement designed to separate and deliver four thread rods simultaneously.

Product Value

- A four-track linear feeder supplies rods into four flexible tubes; a rotary cylinder drives the actuator to blow the rods to preset target positions.

Product Advantages

- Built-in sensors and an air-pressure monitor ensure correct arrival and stable operation.

Application Scenarios

2) Product features

- Four-channel simultaneous delivery: feeds four thread rods per cycle.

- Flexible, visible, durable tubes with ring-shaped sensors to detect rod movement.

- Rotary cylinder drive with four auxiliary clamping cylinders for secure positioning.

- Positioning repeatability of each rod within ±0.1 mm.

- Air pressure switch issues warnings if supply is too low; overall noise level below 75 dB.

3) Product value

- Significantly speeds up part delivery and reduces cycle time by handling four rods at once.

- Improves assembly consistency through high-accuracy positioning and multi-point detection.

- Reduces downtime and rejects by providing real-time pressure and presence monitoring.

- Durable, visible components simplify inspection and maintenance.

4) Product advantages

- Unique, proprietary escapement design claimed to outperform competitors and compliant with quality norms.

- Integrated sensing (tube sensors + auxiliary clamps) for high reliability and repeatability.

- Pneumatic blow-feed approach minimizes mechanical handling and wear.

- Compact, automated solution backed by TAIUNI’s R&D, production, and after-sales capabilities.

5) Application scenarios

- Automated production and assembly lines requiring fast, accurate feeding of rods into tubes or fixtures.

- Wire/harness and tubing insertion processes in electronics, automotive, medical device or consumer-goods manufacturing.

- Any pneumatic feeding or packaging systems where multi-channel, repeatable placement and real-time monitoring are needed.
