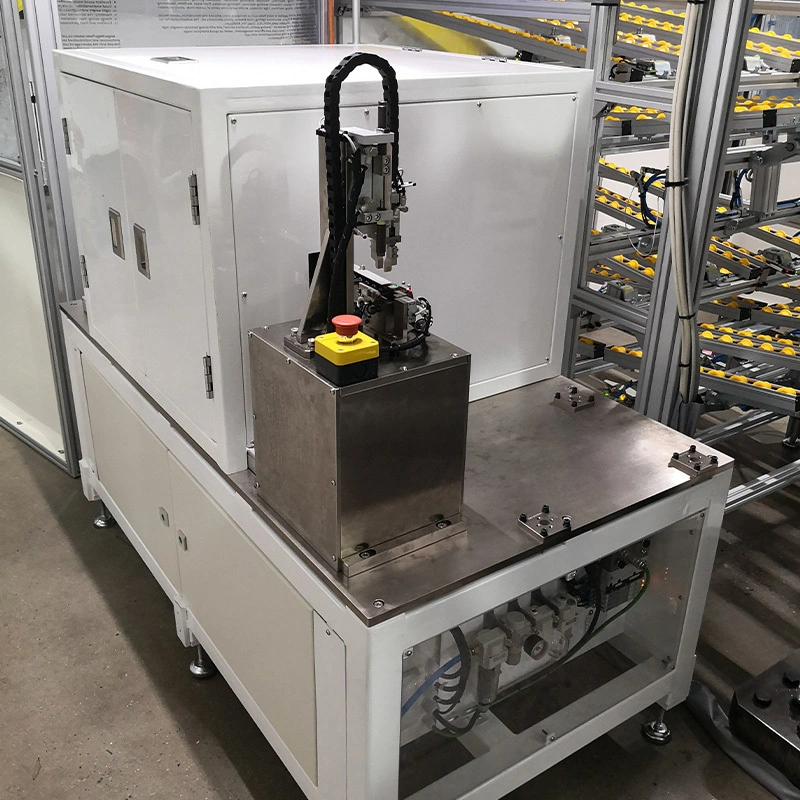

Automatic parts feeding system with parts escapement mechanism for lever of automotive air conditioner radiator Model TUV-S02

Linear track sensor

If the linear track is full of levers, this sensor will indicates in red light to stop the bowl feeder. In contrast, if the track is lack of levers, this sensor will indicates in green light, and the bowl feeder will keep feeding levers into the linear track.

Bowl condition monitoring sensor

This sensor can indicate the levers level in the bowl. If the bowl is full of levers, this sensor will indicates in red light to stop the bulk hopper. In contrast, if the bowl is lack of levers, this sensor will indicates in green light, and the bulk hopper will keep feeding levers into the bowl. It can observably reduce the fault caused by too many levers in the bowl.

Surface coating of the bowl

This PU coating of the bowl surface can reduce abrasion of the levers, also the noise level of the bowl feeder.

Hopper & sensor

This sensor can send out a signal to indicate lacking of levers in the hopper. Thus operator could add more levers into the hopper in time.

Hold and release mechanism

The design of hold and release mechanism can release one separate lever to the fixed position, where robot can pick it precisely.

System control cabinet

System control cabinet contains PLC unit, switching power supply, servo motor driver, relays, terminals and such other devices, which all conform to the CE standard.

Sound & dust enclosure

It can reduce noise level within tolerance limits which reduces or eliminates the need for ear protection. It also makes the production environment more conducive to communication and productivity.
