4 Robotic Handling Equipment for Pharmaceutical Bottle TU-AT01 Model TU-AT01 1

4 Robotic Handling Equipment for Pharmaceutical Bottle TU-AT01 Model TU-AT01 2

4 Robotic Handling Equipment for Pharmaceutical Bottle TU-AT01 Model TU-AT01 3

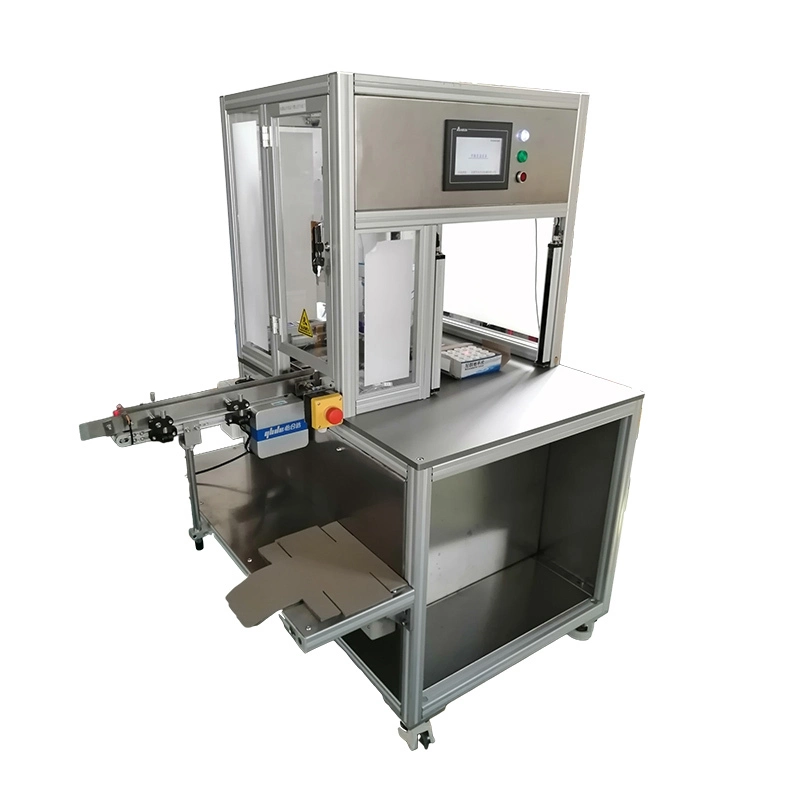

4 Robotic Handling Equipment for Pharmaceutical Bottle TU-AT01 Model TU-AT01

Size:

160cm*95cm*160cm

Place of Origin:

Tianjin, China

Minimum order quantity:

1 set

Feed speed:

160pcs/min

Input Voltage:

AC 220V

Packing:

Wooden case package

Delivery time:

40 working days

Model:

TU-AT01

transaction mode:

by sea

Inquiry

Write a Review

Detail description

Conveyor Belt for bottles

Medicine bottles from the previous process are conveyed to our packaging machine by this conveyor belt.

Positioning mechanism

This alignment mechanism receives medicine bottles from the conveyor belt and organizes them into a precise 4-row by 5-column formation, facilitating efficient robot picking operations. This mechanism includes a pusher cylinder and multiple sets of detection sensors.

Pick & place mechanism

This mechanism is mainly composed of a 4-axis robot, a set of sponge suction cups, and associated detection sensors. Its role is to lift the pre-aligned medicine bottles and accurately place them into the designated cardboard boxes.

IMG_20200812_184958~1

IMG_20200822_101745~1

surface coating~1

Touchscreen

The operator manages the operation of this equipment using an intuitive touchscreen interface. A wide range of operational parameters, including speed, timing, and positioning settings, can be easily configured and adjusted directly on the touchscreen. This allows for flexible and efficient control over the device's functions.

System control cabinet

System control cabinet contains PLC unit, switching power supply, servo motor driver, relays, terminals and such other devices, which all conform to the CE standard.
