Automatic step feeder for screw bolt with parts escapement and control system TUF-ST40L

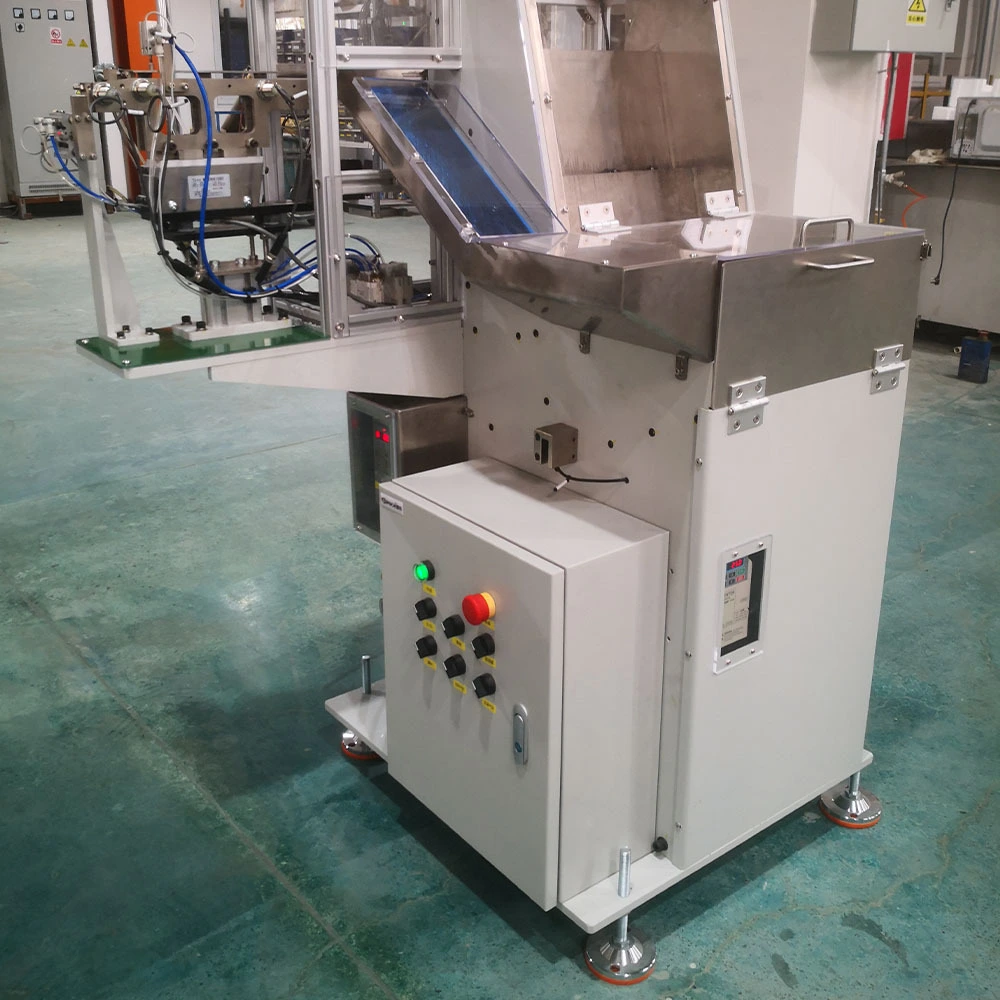

Manual operating panel

Operator can use these buttons to control different parts of step feeder separately. It is convenient when some breakdowns occur, or the operator wants to test the machine before mass production.

Handle design

It is convenient to open the cover to add the parts into the storage box.

Index signals on the tower lamp

The lamp can shows the situation of the feeder machine in current, such green light means the machine is in running well, while red light means failure shutdown.

The lamp can be folded when the machine is in idle time. It is especially convenient for protecting the lamp when transport the machine.

Hold and release mechanism

The design of hold and release mechanism can release one separate screw bolt to the fixed position, where robot can pick it precisely.
